Knowledge Graph vs Semantic Layer vs SQL/PGQ: The 2026 Enterprise Architecture Guide for AI Agents

§ 01

Frame

Every enterprise that wants AI agents, semantic search, or trustworthy LLM grounding eventually hits the same question:

Do we build a knowledge graph, sit a semantic layer on top of what we already have, or just teach our existing databases to behave like a graph?

Vendors blur this on purpose. The three approaches solve overlapping problems but at radically different cost, lock-in, and time-to-value.

Two things have changed the answer in 2026:

This piece pulls the three methodologies apart, shows how agents change the calculus, maps the 2026 vendor landscape, lays out the hybrid patterns that actually work, and gives an honest verdict on when each one fails.

§ 02

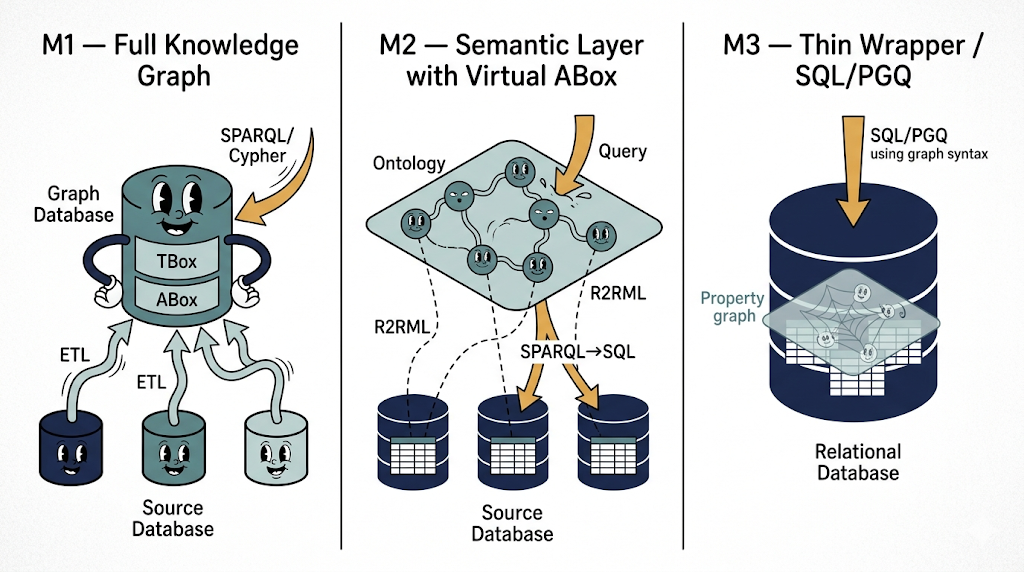

The three methodologies, defined precisely

Methodology 1 — Full Knowledge Graph (materialised TBox + ABox)

A dedicated graph store (RDF triple store or property graph) holds both the schema (the ontology / TBox) and the instance data (the ABox). Data is physically extracted from source systems via ETL or CDC pipelines, transformed into triples or nodes/edges, and persisted in the graph. Queries run in SPARQL, Cypher, or GQL against the graph itself. Reasoners can materialise inferred triples.

Mental model: the graph IS the system of record for relationships and meaning.

Methodology 2 — Semantic + Ontology Layer with ABox Stubs Pointing to Existing DB Tables/Fields (Virtual Knowledge Graph / OBDA)

The ontology (TBox) is modelled formally — classes, relationships, constraints. But the ABox is virtual: instead of materialising triples, you write mappings (typically R2RML or Ontop-style) that say "the class Customer is populated by SELECT id, name FROM crm.customers, the relation placedOrder is the join customers.id = orders.customer_id." When someone queries the graph in SPARQL, the engine rewrites that query into SQL against the source databases and assembles the result at query-time.

Mental model: the source databases stay where they are; the graph is a query-time projection driven by a real ontology.

Methodology 3 — Thinner Wrapper: Make the Existing Database Function Like a Graph and Queryable Through Graph Mechanisms

No separate ontology. No materialised graph. Instead, the existing relational database is taught to expose a graph view of itself — typically via the new SQL:2023 SQL/PGQ standard (CREATE PROPERTY GRAPH … OVER … VERTEX TABLES … EDGE TABLES …), or via a translation layer that turns Cypher or Gremlin into SQL.

The graph is a view, not a store. There is light or no ontology — just labels, vertex/edge tables, and join keys. Queries get the graph pattern-matching operators (GRAPH_TABLE, variable-length paths, shortest-path) but execute as SQL plans on the underlying tables.

Mental model: your existing database is the graph; nothing moves; queries gain a new shape.

§ 03

The agent reality check (read this before anything else)

If you are evaluating any of this for an enterprise that has agents on its roadmap — copilots, customer-facing assistants, investigative agents, operational orchestration — the analysis above is necessary but not sufficient. Agents change the load profile in ways that make M3-only look much riskier than it first appears, and make M2 + M1 design choices into runtime safety decisions.

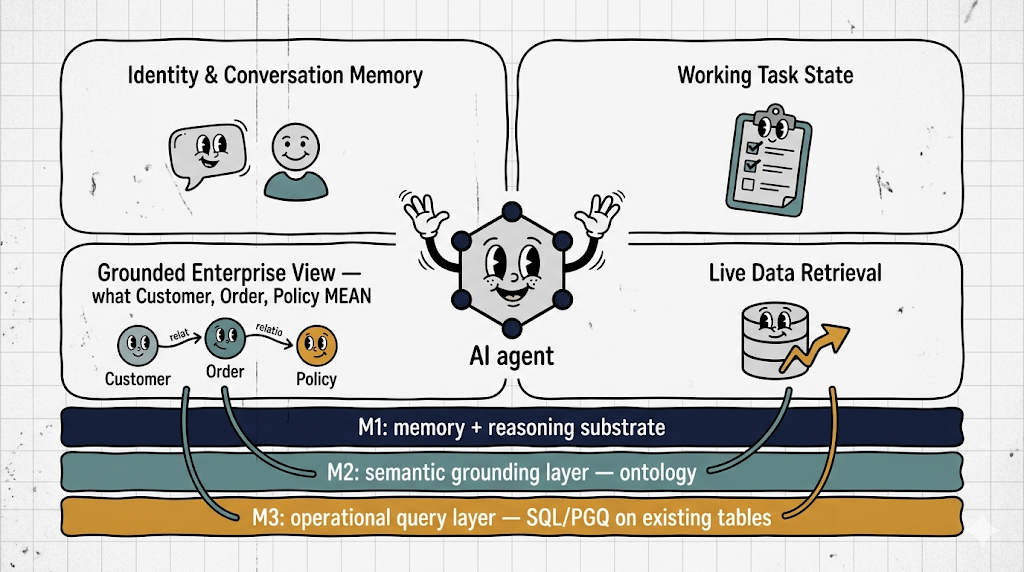

What an agent actually needs at runtime (the "context graph")

An AI agent at runtime needs four things stitched together:

The first two are agent memory (working, episodic, semantic). The third and fourth together are what vendors are now calling a context graph — the graph-shaped layer that gives an agent a structured map of the enterprise it can navigate, traverse, and ground against, rather than a soup of vector chunks.

This is the layer Neo4j is building agent-memory + Context Graph products for, that Palantir's Ontology MCP is exposing to external agents, that Stardog Voicebox is consuming under the hood, and that Microsoft's Agent Framework is connecting to via Neo4j providers.

How agents change each methodology's role

M3 alone becomes brittle for agents. A property-graph view over a relational database gives agents structure — they can traverse foreign keys, find shortest paths, do pattern matching. But it gives them no meaning. An agent asked "show me customers at risk" will fail because the M3 layer doesn't know what "at risk" means, what counts as a customer, or how risk is computed across product lines.

Agents amplify the cost of missing meaning. A BI dashboard with a wrong "Customer" definition is a meeting-room debate; an agent acting autonomously on a wrong "Customer" definition is a remediation incident, a customer-experience failure, or a regulator letter.

M2 becomes the minimum viable agent grounding layer. Virtual knowledge graphs are where the agent grounding story actually fits well in 2026:

M1 does double duty as agent memory + semantic context. The shift in 2026 is that the graph store itself is being used not just for enterprise semantics but for agent memory:

Agent memory has exactly the shape that graphs are good at — episodic chains, semantic relationships between learned concepts, multi-hop traces across users/tasks/objects. Vector stores alone don't preserve those structures.

The workload-to-methodology fit, once agents are in scope

The practical implication

If your roadmap has any agent ambition beyond a single-source NL-to-SQL copilot, M3-only is a dead end. You will end up building M2 — the question is whether you do it deliberately or accidentally as a "glossary" / "context layer" / "agent guardrails project" eighteen months in, after an agent has embarrassed someone.

This is why the rest of this document does not treat the three methodologies as mutually exclusive options. They aren't. The deliverable is a stacked context architecture — and the design question is which domain sits at which level.

§ 04

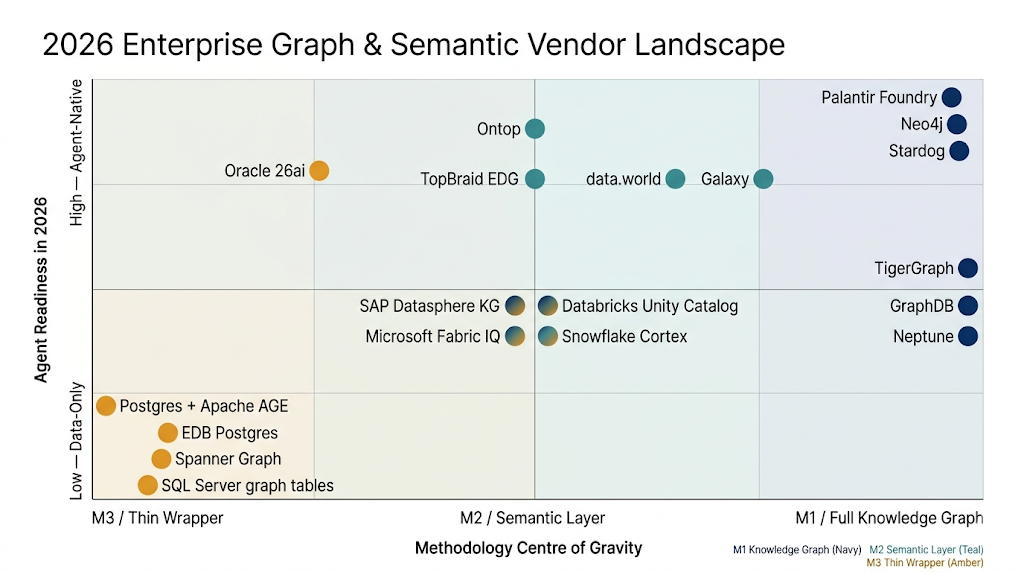

The 2026 vendor landscape (with what's actually shipping)

Pure M1 — Full Knowledge Graph specialists

M1 with strong M2 capability

Pure M2 — Virtual Knowledge Graph / OBDA

M2 with M1 fallback (hybrid)

Hybrid platform plays (positioning across all three)

Pure M3 — Thin Wrapper / SQL/PGQ

What "the centre of gravity" actually tells you

Most vendors will tell you they do all three. That's a sales surface. The realistic placement, in 2026:

If a vendor refuses to tell you where their licence revenue comes from, that's the answer. Wherever the dollars sit is the methodology they actually do. The other two are marketing.

§ 05

How they actually differ (the table CIOs need)

§ 06

Hybrid split architectures — the actual deliverable in 2026

No enterprise above mid-market is going to commit to a single methodology. The real architecture is a deliberate split where different domains sit at different levels, connected by a shared semantic spine. Here are the patterns that work, plus the ones that look clever and fail.

Pattern A — Semantic spine with materialised cores ("M2 + M1 islands")

Shape: M2 is the enterprise-wide ontology layer. Two or three specific domains are materialised into dedicated M1 graphs because they are graph-shaped and high-value.

Worked example — a bank:

Why it works: the M2 ontology defines "Customer," "Account," "Transaction" once. The M1 AML graph projects only the entities and relationships needed for investigation, refreshed from the M2 mapping. Investigators get fast multi-hop traversal; analysts get governed warehouse access; agents get one grounded semantic layer.

Vendor mapping: Stardog (M2 spine + materialised mode for the islands), Palantir Foundry (whole stack in one product), or mixed — TopBraid EDG / Ontop for the M2 spine + Neo4j or TigerGraph for the M1 islands.

Where it fails: if the M1 islands diverge from the M2 ontology over time. Without strict mapping discipline, the islands drift, two definitions of "Customer" appear, and you are back to the problem you started with.

Pattern B — Hyperscaler-native + specialised graph ("Unity Catalog/Fabric IQ + M1 for the hard problem")

Shape: the platform-native semantic layer (Unity Catalog, Fabric IQ, Snowflake Cortex) carries the analytical and agent-grounding load over the warehouse/lakehouse. A specialist M1 graph handles the one or two domains where the platform's semantic layer is too thin.

Worked example — a retailer:

Why it works: you don't double-pay for a semantic layer that the hyperscaler is already shipping. Specialist graph spend is reserved for the workload it earns its keep on.

Where it fails: the hyperscaler's semantic layer is ontology-thin. If your governance team needs OWL/SHACL constraints, regulator-grade lineage, or cross-platform meaning portability, Unity Catalog and Fabric IQ are not enough. You will be forced to add an M2 layer on top, at which point the architecture becomes Pattern C anyway.

Pattern C — Full three-tier ("M1 + M2 + M3 by domain")

Shape: the most architecturally honest, also the most disciplined to maintain. Every domain is consciously placed at one of the three levels based on workload, with a shared ontology connecting them.

Worked example — an insurer:

Each layer has a clear owner, a clear workload, and a clear cost basis. The M2 ontology is the binding contract.

Why it works: workloads matched to the right substrate. Cost proportional to value per domain.

Where it fails: without a dedicated ontology team owning the M2 layer, the three levels diverge and the architecture becomes three uncoordinated silos with overlapping definitions. The most common failure mode in practice and the reason most enterprises end up at Pattern A or Pattern B instead.

Pattern D — Operational M3 + Investigative M1 (no M2)

Shape: M3 for analytical and copilot workloads on the warehouse; M1 for one investigative domain; no enterprise ontology layer.

Worked example — a mid-market bank:

Why it works for mid-market: you may not have the headcount to run an ontology programme. Skipping M2 is a conscious cost-cutting decision. The M1 graph for AML stands alone because regulators force its existence anyway.

Where it fails: at scale. As soon as you have more than one domain that wants an M1 (say, fraud and customer 360), the absence of a unifying M2 ontology means each M1 reinvents the entity model. Eventually you pay for M2 in pain.

Pattern E — Agent-led hybrid ("ontology + memory graphs")

Shape: emerging in 2026, especially in shops betting heavily on Neo4j or Palantir. The M2 ontology grounds what the enterprise knows. A separate, smaller M1 graph per agent (or per agent family) holds what the agent has learned and done — episodic memory, task chains, learned associations.

Worked example — a managed-services firm:

Why it works: separates what the company knows (long-lived, governed, M2) from what the agent remembers (high-churn, per-agent, M1). Lets you scale agent memory independently of the enterprise ontology.

Where it fails: if the agent memory graphs are allowed to override the M2 ontology when they disagree. Agent memory must always defer to the governed ontology, not the other way around. Vendors are still figuring this out — Neo4j's agent-memory three-tier model is the most credible attempt so far.

Patterns that look clever and fail

Choosing your hybrid — two practical heuristics

The agent overlay on top of any pattern

Whatever hybrid you pick, in 2026 you also need to decide:

The hybrid is not optional once agents are in the picture. The question is whether you design it consciously or end up with one accidentally.

§ 07

Where each methodology fits (workload by workload)

M1 (Full KG) is the right answer when…

M2 (Semantic Layer + Virtual ABox) is the right answer when…

This is the architecturally honest answer for most large enterprises in 2026.

M3 (Thin Wrapper) is the right answer when…

§ 08

Where each one fails — the honest take

M1 fails when…

M2 fails when…

M3 fails when…

§ 09

Decision logic — in language a CIO actually uses

Most enterprise architecture docs ask this in a way that doesn't survive contact with reality. "Is meaning a business deliverable?" is the kind of phrase that loses the room. So here it is in plain English.

Question 1 — Are agents on your roadmap in the next 18 months?

This now comes first because the answer reshapes everything.

Question 2 — Will the business pay someone whose only job is to define what your data means?

This is the real test for the meaning layer. Some enterprises have, or will hire, an ontology team / semantic data team / business glossary owner / chief data architect whose deliverable is the agreed meaning of business concepts — what counts as a "Customer," what makes an "Active Account," how "Revenue" is defined across regions, which products are subsidiary to which brand. That deliverable lives somewhere — Confluence, a glossary tool, a catalog, or, increasingly, in a formal ontology.

Question 3 — Are the connections between things what you are trying to find, or are the things themselves?

Question 4 — Can you afford a second copy of your data?

A full knowledge graph means physically extracting data into a new store. That implies pipelines, sync logic, dual ownership, drift management, an SRE rota for the graph store, and the inevitable "which one is right when they disagree" conversation.

Question 5 — What does your data actually live in today?

Question 6 — What's your honest five-year horizon?

The CIO's one-line version

If your enterprise has agents on the roadmap and treats data definitions as a real, owned deliverable, you need a meaning layer (M2 minimum, M1 if relationships are the product or agent memory needs structure). If it doesn't, you need graph queries on the tables you have (M3). Don't buy the ontology before you've hired the ontologist — and don't ship the agent before you've bought the ontology.

§ 010

Takeaway for enterprise heads

The industry markets all three as "knowledge graph." They are not the same thing. And in 2026, you are no longer choosing one of them — you are designing a stacked context architecture.

The honest sequencing for most enterprises:

Start with M3 to validate the analytical workload. Build M2 in parallel as the governed semantic asset, only if you have or will hire someone whose job is to own the meaning, and required if you have agents of consequence on the roadmap. Reserve M1 for the two or three domains where the graph genuinely is the system of record — fraud, MDM, regulatory provenance, or high-stakes agent memory.

The five wrong moves

The CIO's 2026 action list

The hybrid is the deliverable. Design it consciously, or end up with one accidentally.
